SSMA Jack to Jack 2 Hole Flange Mount Adapter 0.3MHz-18GHz 50Ω

Brand Name : ELT

Model Number : SSMA-KFK5

Certification : ISO9001, IS014001

Place of Origin : Xi'an, China

MOQ : MOQ 50 pieces

Price : The price depend on the quantity

Payment Terms : T/T,L/C,D/P

Supply Ability : As requirements

Delivery Time : 8-12 weeks for new production

Packaging Details : 1pcs/plastic bag;100pcs/carton

Product Name : SSMA Jack to Jack 2 Hole Flange Mount Adapter

Model : SSMA-KFK5

Frequency Range : 0.3MHz-18GHz

Impedance : 50Ω

Rated Voltage : 250v

DWV : 750V

Insulation Resistance : ≥5000MΩ

Center Conductor : Copper Alloy, Gold Plated

Outer Conductor : Copper Alloy, Gold Plated

Insulators : PTFE

Samples : Available，In Stock

Contact Now

SSMA / Mini SMA 2 Hole Flange Mount Female to Female Jack to Jack RF Coaxial Adapter
Product Specifications
Items Value
Product Name SSMA Jack to Jack 2 Hole Flange Mount Adapter
Model
SSMA-KFK5
Frequency Range 0.3MHz-18GHz
Impedance 50Ω
Rated Voltage 250v
DWV 750V
Insulation Resistance ≥5000MΩ
Center Conductor Copper Alloy, Gold Plated
Outer Conductor Copper Alloy, Gold Plated
Insulators PTFE
Product Overview
Feature Description
Size Compact (70% the size of traditional SMA connectors)
Frequency Bandwidth Wide frequency bandwidth (DC~18GHz)
Performance Superior mechanical and electrical performance
Reliability High reliability in demanding applications
Threaded Standard 10-36UNF-2
Impedance 50Ω
Frequency Operation Up to 18GHz
Structures Female to Female, Jack to Jack
SSMA RF Coaxial Connectors Interface Dimensions
SSMA Jack to Jack 2 Hole Flange Mount Adapter 0.3MHz-18GHz 50Ω

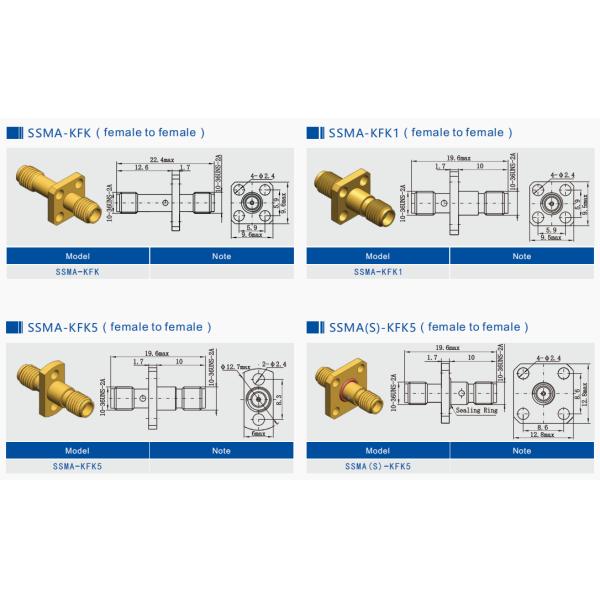

SSMA / Mini SMA Jack to Jack RF Coaxial Adapter Dimensions
2 Hole Flange / 4 Hole Flange Mount Outline Dimensions (Unit: mm).
SSMA Jack to Jack 2 Hole Flange Mount Adapter 0.3MHz-18GHz 50Ω
Note: We also have the model of SSMA male to SSMA female,SSMA male to SSMA male Adapters.
Applications
Ideal for high-precision microwave signal transmission in:
  • Microwave communication systems
  • Measurement equipment
  • Aerospace applications
  • Radar systems
  • Electronics fields
Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
SSMA Jack to Jack 2 Hole Flange Mount Adapter 0.3MHz-18GHz 50Ω
Packaging & Shipping
Packaging: Each SSMA Adapter is carefully packaged in protective cartons to ensure safe transit. SSMA Jack to Jack 2 Hole Flange Mount Adapter 0.3MHz-18GHz 50Ω Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Note: For other similar SSMA Adapter models, please check our catalog. While some models are in stock, all can be produced quickly for the model on catalog.
